On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures

Ποσότητα παραγγελίας min : 5 σύνολο Τιμή : USD500-1000/set
Συσκευασία λεπτομέρειες : Το κιβώτιο χαρτοκιβωτίων, η ξύλινη παλέτα, η συσκευασία δεσμών ζωνών και άλλα είδη συσκευασίας εξασφ Χρόνος παράδοσης : 15-25 ημέρες εργασίας
Όροι πληρωμής : L/C, D/A, D/P, T/T, Western Union, MoneyGram Δυνατότητα προσφοράς : 30MW/month
Τόπος καταγωγής: ΚΙΝΑ Μάρκα: TIANFON
Πιστοποίηση: SGS,ISO 9001,ISO 14001,OHSAS 18000 Αριθμό μοντέλου: Ηλιακά συστήματα Carport

Λεπτομερής ενημέρωση

Γωνία κλίσης: 10/15/20/30 Επεξεργασία επιφάνειας: Γαλβανισμένος,
Χρώμα: Φυσικός ή προσαρμοσμένος Εξουσιοδότηση: 10 έτη
Διάρκεια: Περισσότερο από 25 έτη Τύπος: on/off πλέγμα

Περιγραφή προϊόντων

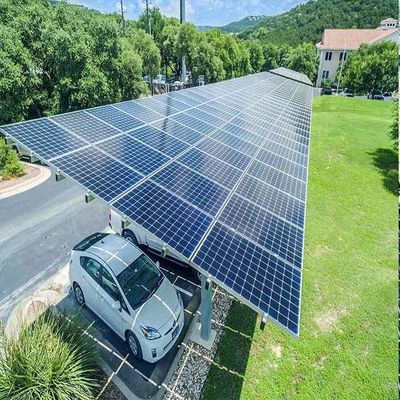

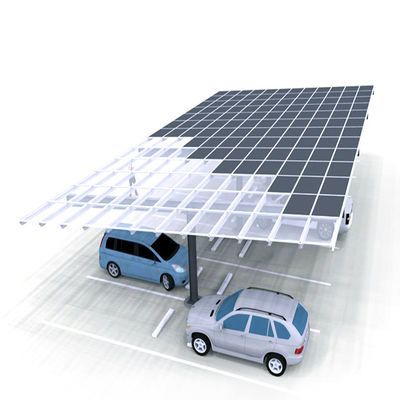

On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures



Short Introduction:



With great flexibility, the carport can be used for both commercial and residential areas.
We provide different design options for you to choose from. They are suitable for both framed and thin film modules of any size.

This system adopts high-strength carbon steel material photovoltaic bracket, and the surface is treated with high-quality hot-dip galvanizing, which has strong corrosion resistance and is suitable for various natural environments.



Carports can be designed to cover one row of parking spots, span over two rows or be as large as a project needs. Many carports can be equipped with electric vehicle charging stations for an extra bonus to cars sheltering underneath.



Product Parameter :



Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um


Surface Treatment: Hot-Dipped Galvanization or Anodizing


Fastener: Stainless steel SS304



Width of space: 2.5~3m

Length of space: 6m


Lowest height: 2.5m



  Application   Private, Government and Enterprise’s Parking Lot
  Span(E-W)   5000mm
  Standard ground clearance   2500mm
  Installation Angle   5-30°
  Max Wind Speed   up to 42m/s
  Max Snow Load   up to 1.4KN/m2
  Panel array   Landscape
  Rows   4/5/6
 Warranty  10 years
 Duration  More than 25 years


Features :



► Beautiful appearance.

Photovoltaic panels replace the membrane structure steel roof of the traditional carport. The blue photovoltaic panels shine in the sun, adding a beautiful scenery.


► Strong practicality.

Not only can it prevent the car from being exposed to the sun and rain, but it can also provide a steady stream of green power for charging new energy vehicles and enterprises.


► High efficiency
Especially beneficial over winter months when there is less sunlight.Gain up to 25% more solar panel efficiency by tilting your panels towards the sun instead of laying them flat.


► Anodized aluminum construction
Stainless steel assembly hardware included. Fasteners for attaching solar panel to mount included.Easy to fix and install.


► Designed for solar systems
Can be used on RV,MARINE,MOTORHOME,roofs, sheds, garages or other flat surfaces to tilt solar panels or ground.


► Solar panel mounting angle is user adjustable
Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.


► Long-term benefits.

The photovoltaic carport system continues to generate electricity for 25 years. After the cost is recovered, you can enjoy the pure income brought by the photovoltaic carport.

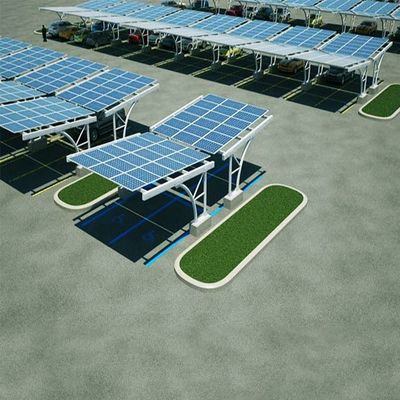

Installation:



On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures 0



On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures 1



Our Certificates:



On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures 2

On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures 3



Packaging & Shipping:



On/off Grid Anodized Aluminum 2.5 M Lowest height PV Residential solar Carport Structures 4



► Payment Terms: L/C,D/A,D/P,T/T

► Package: strong and long distance transportation package

► Port: Tianjin, Shanghai, Qingdao

Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
